The Story
Jonathan’s Hot Take:

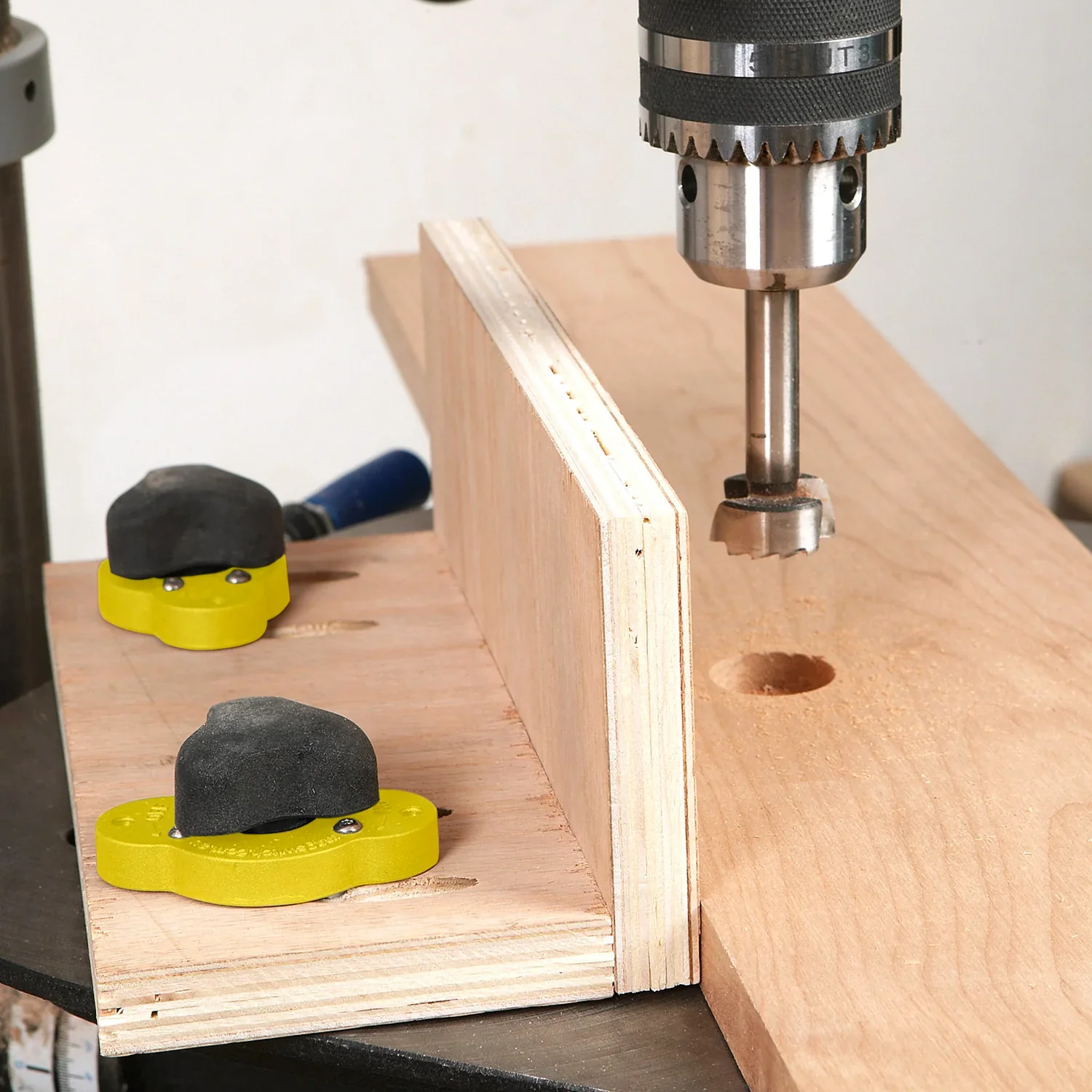

The Magswitch magnetic fixturing clamp will secure your fixtures and jigs into place. Rotate the knob to turn on and off 95 pounds of magnetic hold force. Use the included 30mm Forstner Bit to simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.
- Magnetic field turns completely on and off mechanically
- Does not use an electrical power source
- Magnet stays clean
- Holds flat and round surfaces of steel
- 3/4" standoff for flush mount
- Designed with screw holes to add more security in a fixture
- Excellent for woodworking, welding, and fabrication
SPECIFICATIONS
Max Breakaway: 95 lbs (43 kg)
2:1 Shear Working Load: 9 lbs (4 kg)
Product Weight: 0.2 lbs (0.1 kg)
Dimensions: 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)
Magnetic Pole Footprint: 30 mm x 21 mm (1.18 in x 0.82 in)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Jonathan’s Hot Take:
The Magswitch magnetic fixturing clamp will secure your fixtures and jigs into place. Rotate the knob to turn on and off 95 pounds of magnetic hold force. Use the included 30mm Forstner Bit to simply drill a hole in a fixture and place the MagJig in to use for downward pressure clamping.
- Magnetic field turns completely on and off mechanically
- Does not use an electrical power source
- Magnet stays clean
- Holds flat and round surfaces of steel
- 3/4" standoff for flush mount
- Designed with screw holes to add more security in a fixture
- Excellent for woodworking, welding, and fabrication
SPECIFICATIONS
Max Breakaway: 95 lbs (43 kg)
2:1 Shear Working Load: 9 lbs (4 kg)
Product Weight: 0.2 lbs (0.1 kg)
Dimensions: 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)
Magnetic Pole Footprint: 30 mm x 21 mm (1.18 in x 0.82 in)
